Save $175 on MSI's enthusiast-class AMD X870E board with code X3D1030, bringing USB4, dual 5G networking, and flagship VRMs down to competitive pricing.

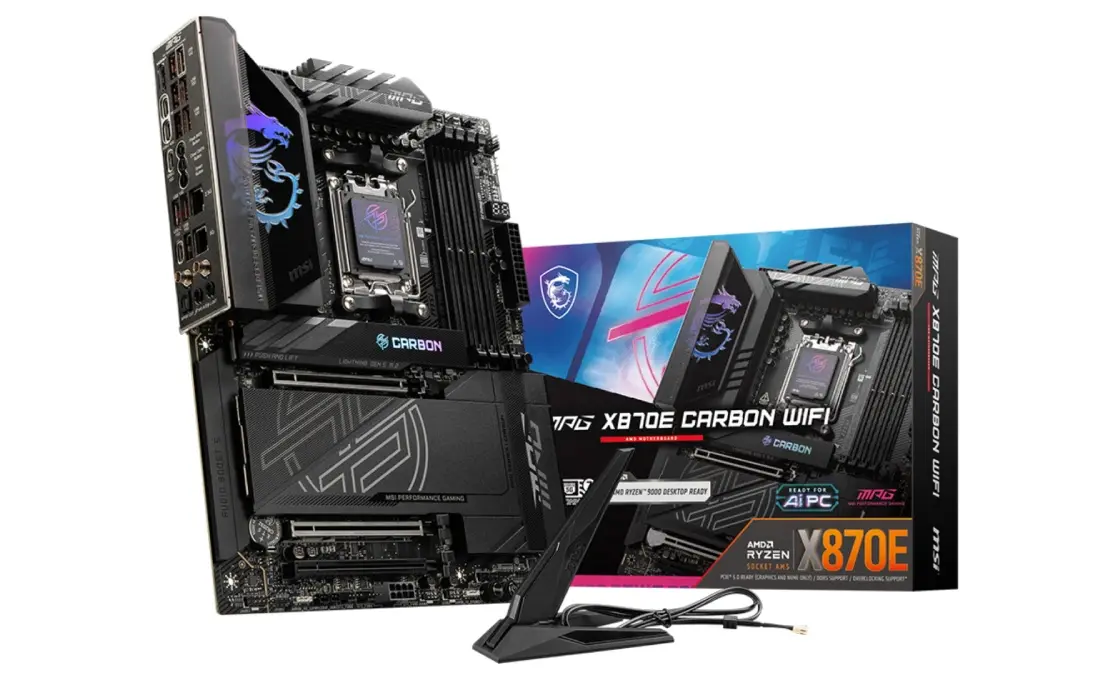

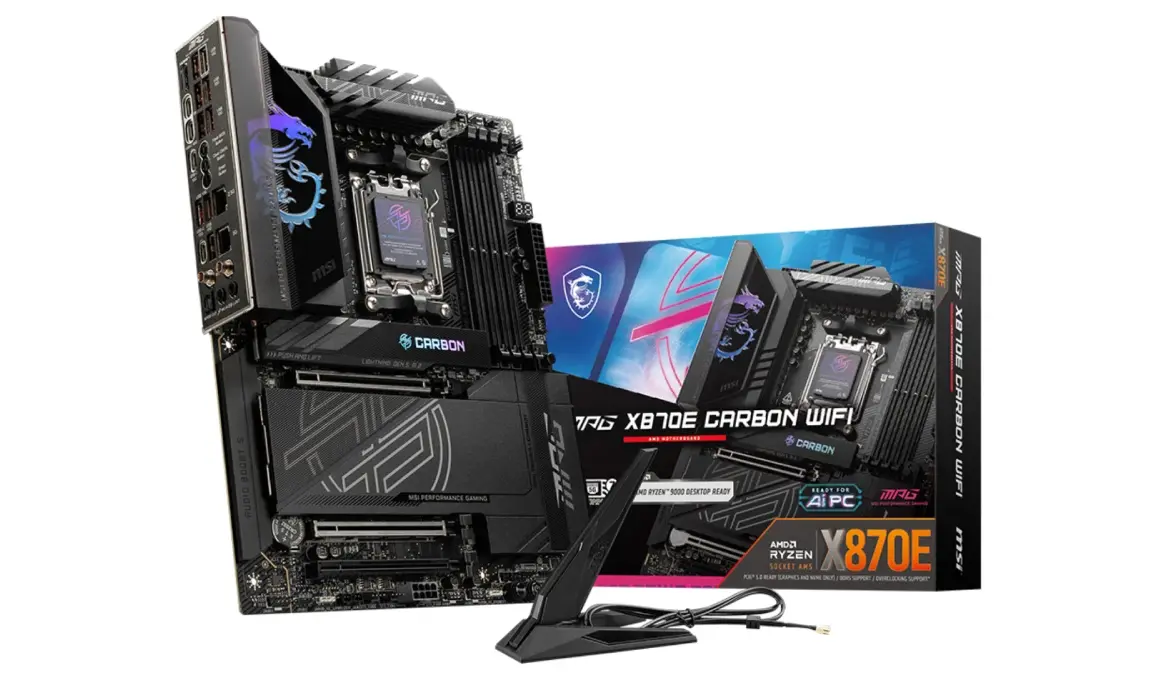

MSI slashed $175 off the MPG X870E CARBON WIFI, dropping it from $499.99 to $324.99 with promo code X3D1030. The deal positions this premium X870E board at pricing typically reserved for standard X870 and B850 motherboards while delivering the complete feature set AMD's flagship chipset enables.
The X870E designation matters. Unlike standard X870 and B850 boards, X870E requires USB4 support as standard and guarantees full PCIe 5.0 implementation across graphics and storage. You get 44 total PCIe lanes (24 of them Gen 5) compared to 36 lanes on X870 boards. MSI built the Carbon WiFi around this advantage with two USB4 Type-C ports delivering 40Gbps bandwidth, PCIe 5.0 graphics support with x16 or dual x8 configuration, and dual Gen5 M.2 slots rated for 128Gbps each.
Premium VRM for Ryzen 9000 X3D Processors
The 18+2+1 Duet Rail Power System with 110A Smart Power Stage components handles AMD's power-hungry Ryzen 9000 processors without compromise. This matters particularly for the Ryzen 9 9900X3D and 9950X3D, both of which draw sustained power under all-core workloads despite their 3D V-Cache efficiency gains.
MSI paired dual 8-pin CPU power connectors with an 8-layer PCB using 2oz copper and server-grade materials. The VRM thermal solution extends across the entire power delivery section with enlarged heatsinks, direct-touch heat pipes, and 7W/mK MOSFET thermal pads. User reviews consistently highlight rock-solid stability even when pushing overclocked DDR5-8400+ memory profiles with EXPO enabled.
Dual Networking Advantage
The Carbon WiFi combines Realtek 8126 5G LAN and Realtek 8125 2.5G LAN controllers, giving you dedicated high-speed networking for gaming traffic while isolating streaming, downloads, or NAS transfers to the secondary port. Wi-Fi 7 with Bluetooth 5.4 supports tri-band operation (2.4GHz/5GHz/6GHz) with peak throughput reaching 5.8Gbps and 320MHz channel width on 6GHz.
You won't find this networking configuration on boards under $400. Most competitors in this price range offer either single 2.5G LAN or single 5G LAN, forcing compromise. MSI gives you both plus the latest Wi-Fi 7 standard, which translates to lower latency and higher stability in congested wireless environments.
Practical Build Features
MSI's EZ DIY implementations remove common build frustrations. The EZ PCIe Release button lets you remove graphics cards with one hand instead of fumbling with the retention clip behind massive GPUs. EZ M.2 Shield Frozr II covers attach without screws, and the EZ M.2 Clip II system installs SSDs via push-latch mechanisms.
All four M.2 slots include double-sided Shield Frozr heatsinks. The two CPU-connected slots support PCIe 5.0 x4, while the chipset-connected slots deliver PCIe 4.0 x4. MSI rates sustained Gen5 SSD operation without thermal throttling thanks to the heat-pipe design transferring heat from VRM and M.2 areas to the extended aluminum heatsink.
Competitive Context
The $324.99 sale price (with code X3D1030) undercuts direct X870E competition significantly. ASUS ROG Strix X870E-E Gaming WiFi sells for $499, Gigabyte X870E Aorus Elite sits at $319 but lacks dual 5G networking, and ASRock X870E Taichi commands $489. MSI's Carbon WiFi delivers flagship-class VRM and networking at mid-tier X870 pricing.
Standard X870 boards like the MAG X870 Tomahawk WiFi retail for $309, but you sacrifice USB4 support, lose 8 PCIe lanes, and drop from dual 5G networking to single 5G LAN. The $16 difference makes X870E's additional capabilities a straightforward value proposition.
B850 boards start around $199, but you give up PCIe 5.0 graphics support entirely, reduce memory overclocking headroom, and work with lower-tier VRM designs inadequate for sustained high-power operation. If you're building around Ryzen 9 9900X3D, 9950X3D, or planning a GPU upgrade to RTX 5090, the Carbon WiFi's additional investment pays off in longevity and performance headroom.
Audio and RGB Implementation
Realtek ALC4080 codec handles 7.1-channel audio with 32-bit/384kHz playback support on the front panel connector. MSI includes S/PDIF optical output for home theater integration. Audio Boost 5 implements physical PCB separation between audio traces and high-frequency components, reducing electrical noise.
Mystic Light RGB runs through three addressable V2 RGB LED headers and one standard RGB header, supporting per-LED control on compatible strips. The board's own RGB implementation stays tasteful with a single light bar along the front edge instead of aggressive gaming aesthetics.
Deal Timing and Availability
The X3D1030 promo code applies at checkout on MSI's official US store. MSI rates the board for AMD Ryzen 9000, 8000, and 7000 series processors with DDR5 support up to 8400+ MT/s overclocked. The board ships with a three-year warranty and includes free shipping on orders over $25.
Stock fluctuates on X870E boards generally due to demand from Ryzen 9000 X3D builders. If you're planning a high-end AMD build, this $175 discount delivers premium features at pricing that won't last once inventory tightens.
